T  R  A  I  L  E  R     F  O  R
S  P  E  C  I  F  I  C     U  S  E  S
Specific Solutions for Traily Transport
TBT 1600
TRAILER TOW FOR CUSTOMIZABLE ARRANGEMENTS

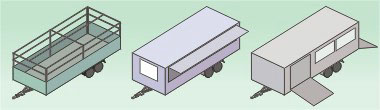

To answer in flexible way to the new demands in the field of the transport commodities through confirmed towing hauled by motor vehicle. we have developed the Towing Todaro TBT 1600: characterized by a basic  frame to tall resistance to 2 axis from an exceptional dimensions - useful surface of over 13 mq! -, it allows through personalized preparations the employment manifold applications for private use, commercial and industrial. The constructive characteristics are optimal to resolve in sure, economic and practical way every specific demand: the frame has been projected to welcome flatcars with fixed or overturnable banks, large cases in plate or "centinato" mode, vans with ramps, overturnable openings, preparations for tourist and commercial promotions and it is the alternative ideal to the purchase of motor vehicle of peer ability of load.


Caratteristiche:

• Structure in zinc plated sheet painted with square section galvanized to warm
• Torsion bar suspensions around 4 wheels
• Inertial brakes with regulation shock absorbers
• Backing automatic system
• Telescopic wheel adjustable
• Bumper and mudguards in steel plate galvanized
• Back lights on detachable bumper of great dimensions
• Telescopic wheel adjustable
• Homologated M.T.M.C. for Italy
• Lights according to highway code

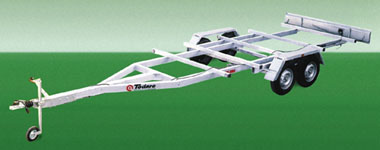

click here to enlarge the photo

OPTIONALS:

• CUSTOMIZABLE ARRANGEMENTS
• Wheels 165 SR 13

ADVANTAGES:

•  Basic  frame personalizeble according to Your specific demands
• Strong structure to tall resistance entirely galvanized
• Surface of load over 13 mq.
• Load profit up to 16 quintals
• Can be use whit a normal motorcar or from motor vehicle
• No maintenance
• Mechanical parking brake
 with lever control
T E C H N I C A L   D A T A :

  Total weight (Kg): 1.600 / 1.100
  Load capacity (Kg):

1.200 / 700
  Tare (Kg):

400
  External dimensions (cm):

800 x 230 x h 250
  Max dimensions arrangements (cm):

670 x 230 x h 190
  Wheels:

155 SR 13
  Number of axes:

2

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
