A G R I C O L T U R A L     S  E  R  I  E  S
Specific Solutions for Traily Transport
RF 30 Tractor/Tow
TRAILER TOW WITH
3 OVERTURNABLE SIDES

Characteristics:

• Structure channel iron and structural steel
• Flactar in shaped plate with nervous systems of stiffening
• 3 Overturnable Sides, arc-welded, provides with steering-column
• Oven Painting with anti-rust epoxy paint and enamels
Adjustable Slave-shaft in height, with jointed wheel
• Frame covered in the superior part with special wood ( shock-absorber and noise-abating) to avoid the direct contact with the box
• Overturning with hydraulic command
• Mechanics brake (or hydraulic to application *)
• Type-approved M.T.M.C. for Italy
 M.T.M.C. for Italy
• Lights Type-approved
For Trailer tractor:
• Live axle
• Transmission shaft
• Differential carrier
• Universal joint

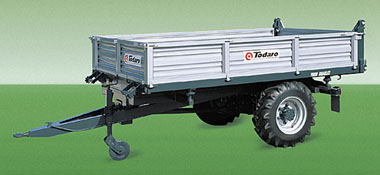

click here to enlarge the photo


OPTIONALS:

• Hydraulic brakes with operation commanded by the tractor
 • Over-Sides
 • Anterior bridge
 • Toolbox
• Spare wheel with support of lodging
 • Tub in plate soldering, painted to the inside with varnishes type-approved for foods


T E C H N I C A L   D A T A :
RF 30 TRAILER RF 30 TRACTOR
  General load (Q.li):

30

 30
  Box Dimensions (cm): 280 x 175 x h 40 280 x 175 x h 40
  Tare (Q.li) 5 7
  Brakes Mechanic /Hydraulic* Mechanic /Hydraulic*
  Ribaltable sides 3 3
  Wheels 10.0 / 75-15 10.0 / 75-15
  Number of axes: 1 1


TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax +39 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
