N   A  U  T  I  C  A  L    S  E  R  I  E  S
 Specific Solutions for Traily Transport

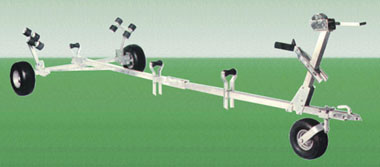

TBM 600
TOW FOR LAUNCHING AND TOWAGE - LOAD 600 Kg.

 Characteristics:

• Steel pipes chassis
• 4 back rolls adjustable
in height and width
• Central roll
• Anterior bow-stop with manual winch
• Frame can be dismantled
• Towing hitch for inside moves
• Pneumatic front wheel revolving
click here to enlarge the photo

OPTIONALS:

• Pneumatic Wheels increases for sand 470x225
• Roller and additional bars
• Winch from Kg.750
• Kit Visual devices
• Front wheel adjustable in height
• Shaft with knob


T E C H N I C A L   D A T A :
  Total weight (Kg):

600
  Load capacity (Kg): 545
  Tare (Kg): 55
  External dimensions (cm): 450x190
  Length boat (cm): 450
  Wheels: 490x130
  Number of axes: 1

TODARO RIMORCHI
S.S. 113, Bivio Segesta - 91013 CALATAFIMI (TP), ITALIA
Tel/Fax +39 0924 951822 - E-mail: todarorimorchi@tiscalinet.it



Dovuto al costante perfezionamento dei prodotti Todaro, le caratteristiche sono soggette a variazioni senza preavviso per esigenze tecnologiche o di mercato.
Specifications subject to changes without notice.
